Build a 3D quiz in Human Studio

Feature availability


Bring anatomy learning to life by transforming any model from Explore or My Library into an interactive 3D quiz. In Human Studio, you can layer questions directly onto anatomy, physiology, or pathology models to create an engaging assessment experience. You can even teach and quiz using the same model to reinforce learning through exploration.

Like all of our 3D content, quizzes can be embedded in your LMS, website, or application for use in learning activities, self-guided knowledge checks, or even graded assessments.

Follow the steps below to start building your own 3D quiz.

Tip: Before proceeding, make sure your model is already open in Studio. For instructions, see Customize 3D models in Human Studio.

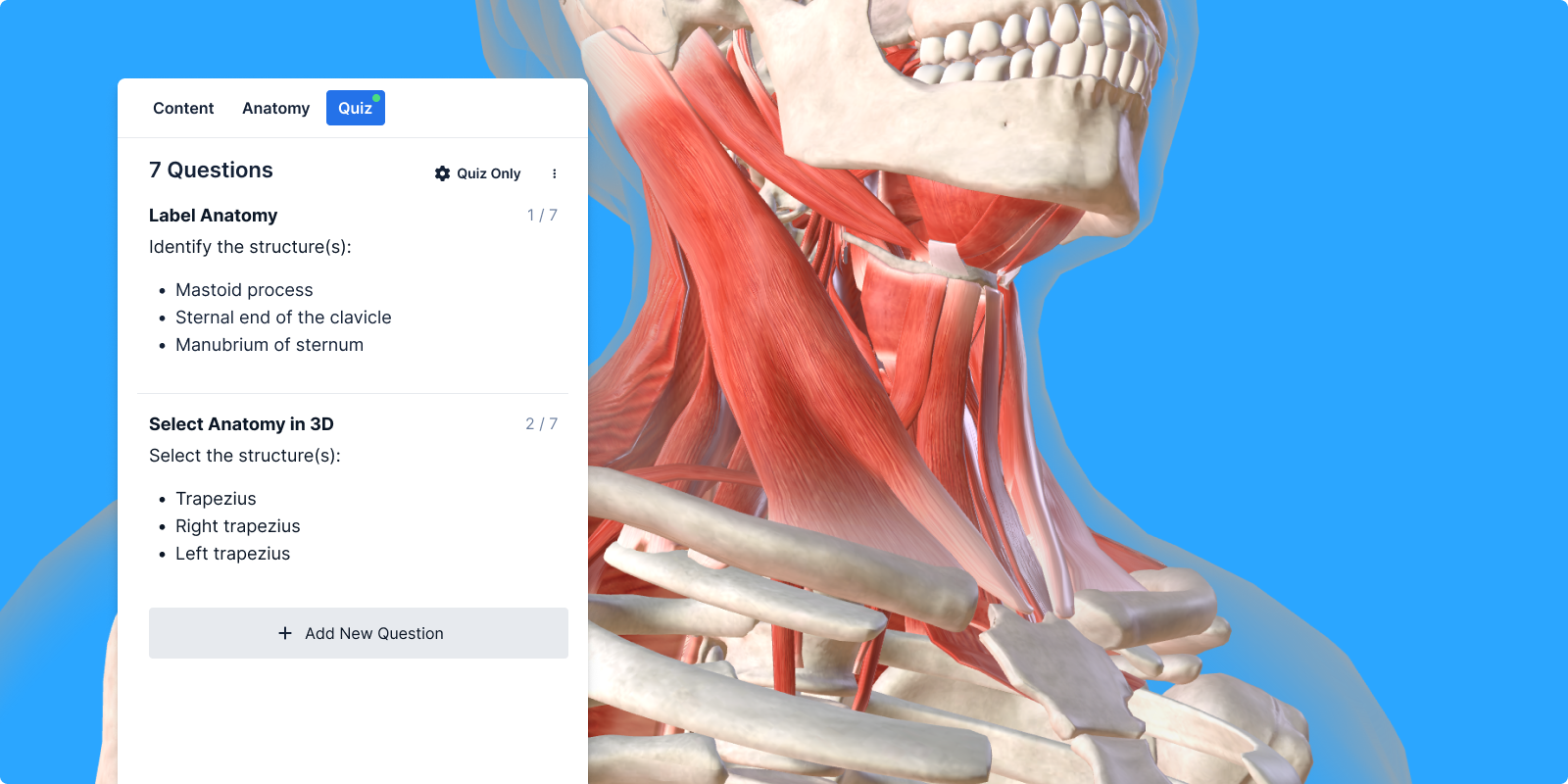

Create a quiz

To enable quiz mode, you must add at least one question:

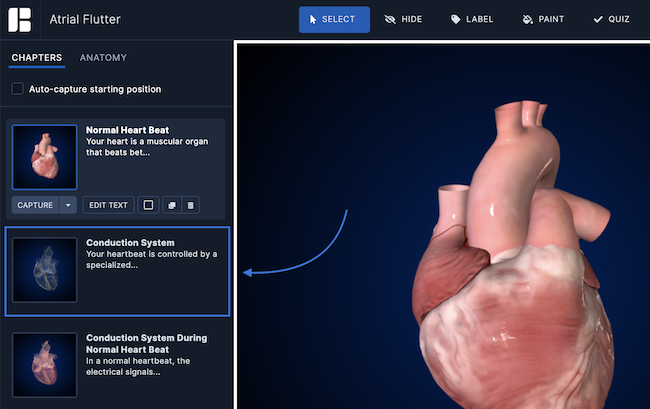

  1. Open the Chapters panel on the left and select the chapter where you want to add a quiz question. (If your model only has one chapter, it will already be selected.)
  2. Select the Quiz tab in the panel to the right (next to "Content" and "Anatomy").
  3. In the Quiz panel, click the    Add New Question button.

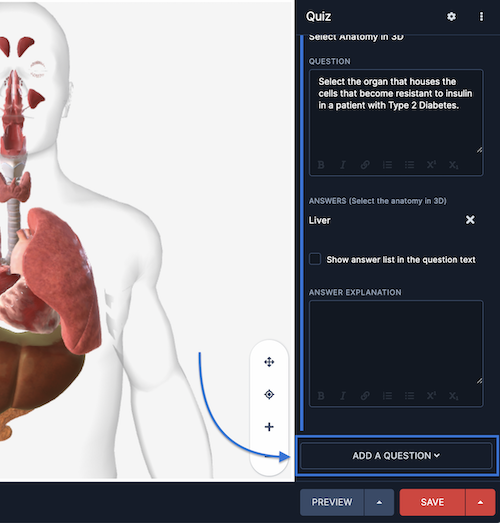

  4. Add additional questions as desired:
    • To add another question to the same chapter, scroll down in the Quiz panel and click    Add New Question again.
    • To add a question to a different chapter, select your desired chapter, and repeat steps 1-3 above.
  5. Save your changes.

Note: For detailed instructions on each question type, see the following articles:

Once a question is added and your changes saved, your quiz will automatically be available in your model or tour as optional to the quiz taker. See Understanding view modes for 3D quizzes for more details.



Configure the quiz experience

Visibility modes

There are three visibility modes available for 3D quizzes that control how learners can access your quiz: Quiz Optional, Quiz Only, or Quiz Disabled.

Your quiz’s current visibility mode appears at the top of the Quiz panel, next to the    Edit quiz settings button.

All new quizzes are set to Quiz Optional by default. You can switch to Quiz Only or Quiz Disabled at any time, depending on how you plan to deliver or embed your quiz.

To learn more, see:



Question settings

Each question in your quiz includes three advanced settings that control how the question appears and behaves:

  • Label Display
    By default, all labels added in Label mode are hidden in Quiz mode. To display labels for additional context, select Show chapter labels for this question.
  • Next Question Button Text
    Customize the text shown on the Next Question button. If left blank, the default label (Next Question) is used.
  • Starting Position
    By default, each quiz question uses the same starting position as its chapter.

    To save a custom starting position for a quiz question:
  1. Use your mouse, keyboard, or 3D controls to reposition the model.
  2. When the view looks exactly how you want it to appear for the learner, click Capture Position.
  3. Click Preview to confirm how the model will load for this question.

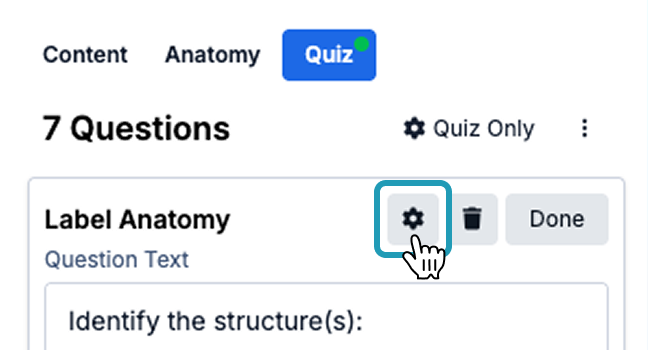

To open these settings for a specific question:

  1. Hover over a question in the Quiz panel.
  2. Click the    Edit button that appears.

  3. Click the      Manage question settings icon.




Preview a question

To preview any question while building your quiz:

  1. Hover over the question in the Quiz panel.
  2. Click the    drag handle icon.
  3. Select Preview Question from the drop-down menu.



Delete questions from a quiz

Follow the steps below to remove one or all questions from your quiz.

  • To delete a single question from your quiz:

    1. Hover over the question in the Quiz panel.
    2. Click    Edit.
    3. Click the   Delete icon.

    Alternatively, click the    drag handle to the left of the question, and select Delete from the drop-down menu.

  • To delete all questions from a given chapter or the entire quiz:
    1. Click the    three dots in the upper-right corner of the Quiz panel.
    2. Select one of the following from the drop-down menu:
      • Delete this chapter’s questions
      • Delete questions from all chapters



Save a quiz

When you are finished building your quiz, take the following steps to save it to My Library:

  1. Click Save in the upper-right corner of the page.
  2. In the pop-up window, review and update the model title as needed.
  3. If you belong to a team, you can modify your content permissions here as well.
  4. Click Save.

Your quiz will now appear in My Library, ready to edit, share, or publish.



Publish a quiz

If you plan to integrate your quiz into a course, website, LMS, or application, you can publish it as an embed code or a direct link.

Tip: Before publishing, review 3 ways to publish a 3D quiz to understand how your visibility mode and Publish tool selections affect the learner experience.

  1. Open your quiz in My Library.
  2. Follow the steps in Publish a 3D model to generate your embed code or direct link.

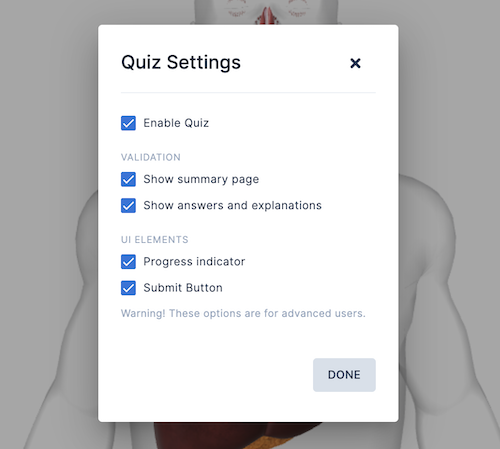

Advanced quiz settings

In addition to your quiz's question settings, there are several advanced, quiz-level settings that can be modified to disable key elements of the quiz experience, such as the summary page, answer visibility, and progress indicators. These usually do not need to be disabled, but if you do need to disable them, please see Configure my quiz settings for guidance before proceeding.
